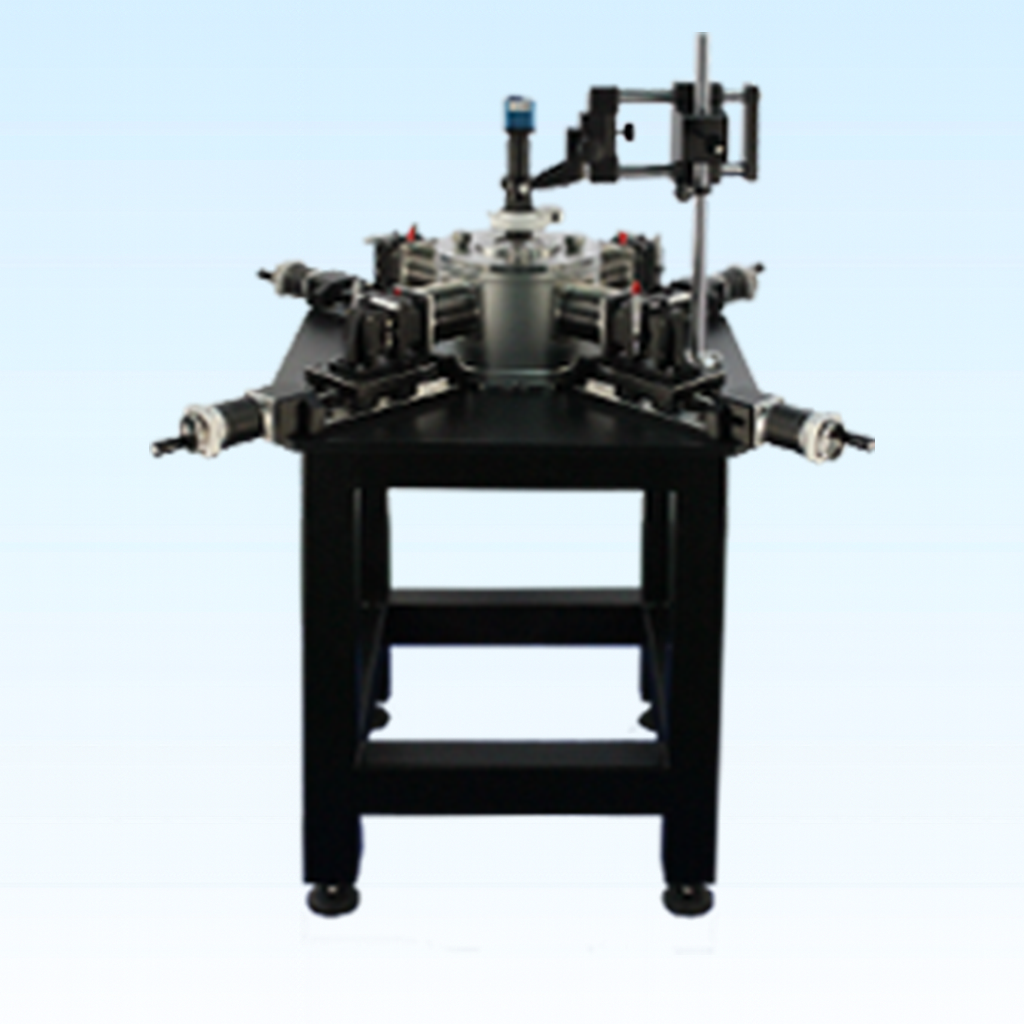

LNPS-80 Low Temperature Probe Station

The Vectomag LNPS-80 Low Temperature Probe Station provides a reliable platform for non-destructive electrical, optical, and microwave measurements on materials and semiconductor devices.

It supports device sizes up to 80 mm, making it ideal for research on nanoelectronic materials, quantum wires, quantum dots, and semiconductor structures.

The LNPS-80 offers precise temperature control from 80 K to 425 K, using liquid nitrogen cooling with a heat-shielded chamber that reduces blackbody radiation and minimizes LN2 consumption.

Its modular design allows users to configure probes, sample stages, and measurement cables for different experimental needs, supporting DC, RF, and microwave measurements.

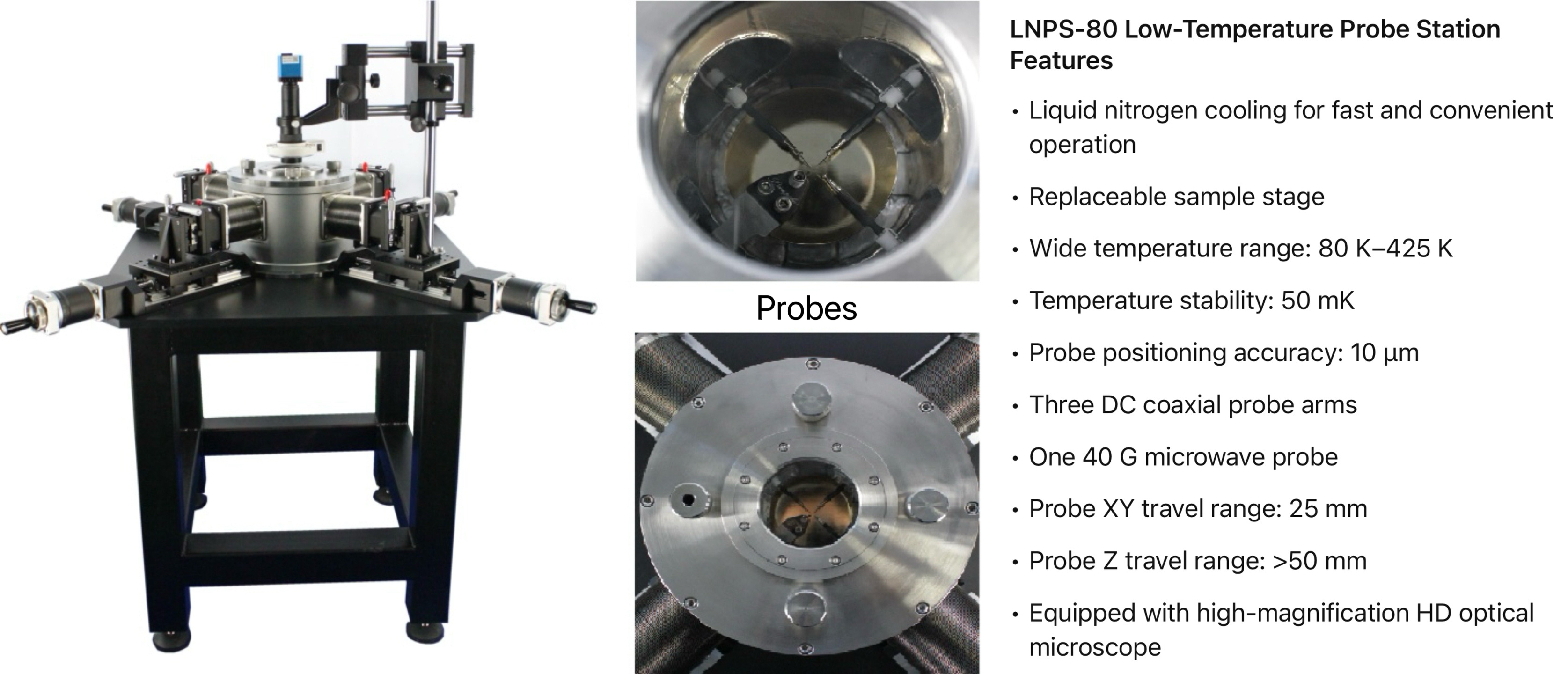

• LNPS-80 main chamber and base platform
• Four-axis precision probe arms
• Interchangeable sample stage (80 mm max)
• Temperature sensor + heater for PID control
• Liquid nitrogen dewar with insulated transfer line
• High-magnification microscope module
• Measurement cables and feedthroughs for DC / RF / microwave testing

• Liquid nitrogen cooling for fast and stable temperature control
• Interchangeable sample stages for flexible configuration
• Temperature range: 80 K – 425 K
• Temperature stability: ≤ 50 mK
• Probe position accuracy: 10 µm
• Four precision probe arms, each with XYZ fine adjustment
• Three DC coaxial probes + one 40 GHz microwave probe
• Probe travel: XY 25 mm / Z > 50 mm
• High-magnification optical microscope for accurate alignment and imaging
• Beryllium / tungsten probes minimize thermal conduction to the sample

• Semiconductor devices and integrated circuits
• Nanoelectronic / quantum dot / quantum wire materials
• MEMS and superconducting devices
• Electrical and optoelectronic characterization under cryogenic conditions
• DC, RF, and microwave parameter testing

• Additional DC and RF probe arms
• Cryogenic camera or optical window for visual observation
• High-frequency connectors (> 40 GHz)
• Customized sample holders for wafer or chip testing
• Vacuum pumping and pressure control modules

• Real-time temperature display and data logging
• PID temperature stabilization control

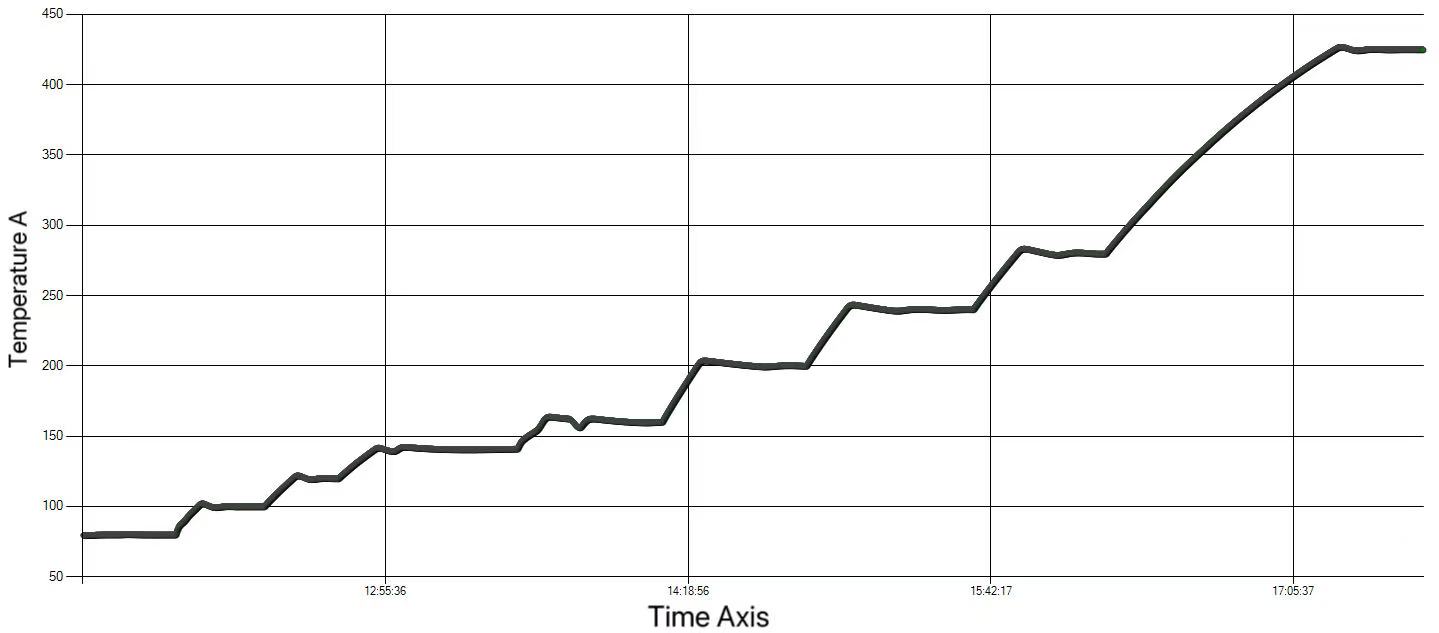

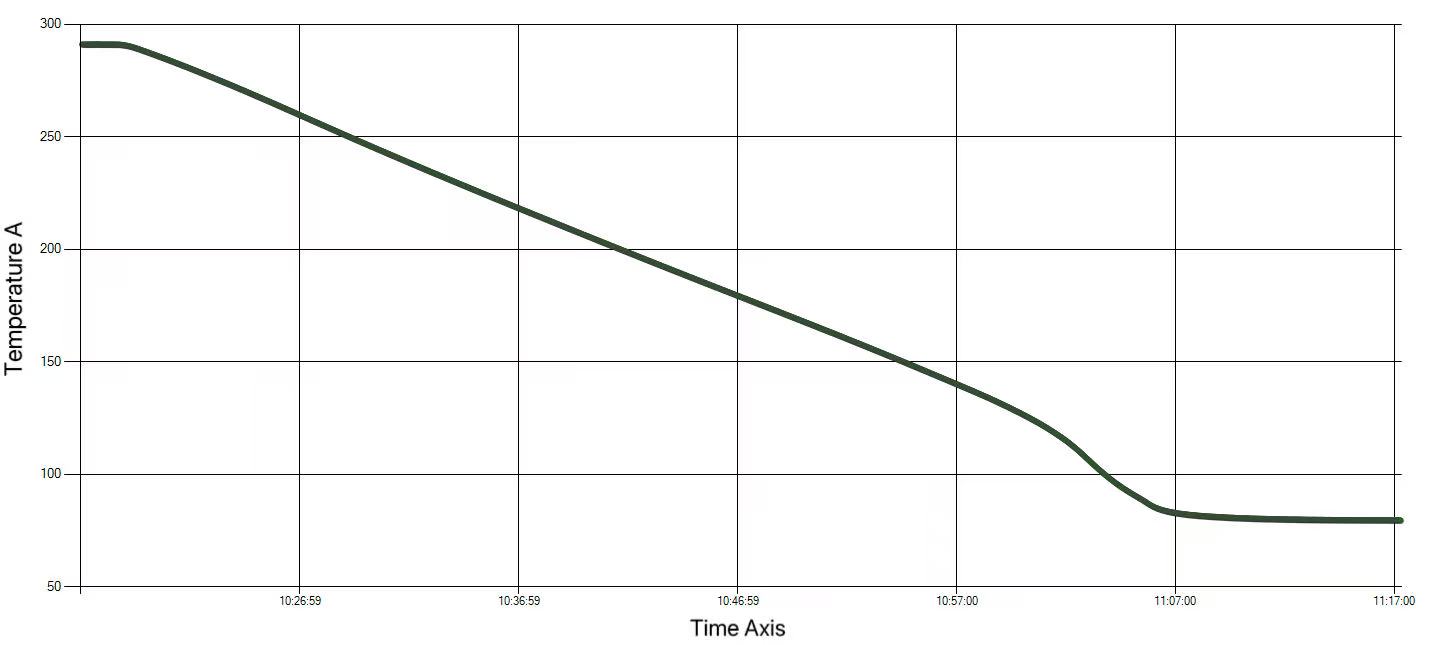

• Graphical cooling and warming curves for data analysis
• Auto shutdown and protection functions
• Data export in CSV / TXT format
