Automated Hall Effect Measurement System
This automated Hall effect system measures carrier concentration, mobility, resistivity, and Hall coefficient with micro - probe precision and HDTV microscopy.
View full-size image
1. Product Overview
The Automated Hall Effect Measurement System provides a complete solution for evaluating the electrical properties of semiconductor materials. It integrates precision instruments and automated software to deliver highly accurate and repeatable results.
The system enables simultaneous acquisition of critical parameters such as bulk and surface carrier concentration, mobility, resistivity, Hall coefficient, and magnetoresistance. With full automation, it significantly reduces manual operation and improves testing efficiency.
2. Key Features
- Automated calculation of key semiconductor parameters
- High-precision electromagnet and power supply for stable magnetic fields
- Advanced constant current source and voltmeter for accurate Hall voltage measurement
- Flexible system design including probe station, matrix card, and standard samples
- Automated data acquisition and curve plotting
- Suitable for research laboratories and semiconductor material testing
CMT-300 Hall Effect Test System Configuration List
| No. | Name | Quantity |
| 1 | CMTSBV-100 electromagnet (vertical magnetic field) | 1 |
| 2 | CMT-320 | 1 |
| 3 | CMT-150 Gauss meter | 1 |
| 4 | Three-dimensional micro motion platform | 4 |
| 5 | Tungsten steel gold-plated pressure needle (three specifications) | 3 |
| 6 | CMT-F2030 high-precision linear power supply | 1 |
| 7 | TV microscope | 1 |
| 8 | HD camera | 1 |
| 9 | Probe bracket | 1 |
| 10 | Serial cable | 4 |
| 11 | Power cord | 4 |
| 12 | Accessory box (including ohm contact kit) | 1 |
| 13 | System software | 1 |
| 14 | System manual | 1 |
| 15 | Sample | 3 |
| 16 | Special thermometer for electromagnet | 1 |
| 17 | Standard cabinet (including socket strip) | 1 |
| 18 | Laptop computer | 1 |
4. Software Functions
- Automated data acquisition and processing
- Calculation of Hall effect parameters including carrier concentration, resistivity, and mobility
- Real-time display of magnetoresistance and temperature-dependent properties
- Curve plotting and export for advanced analysis

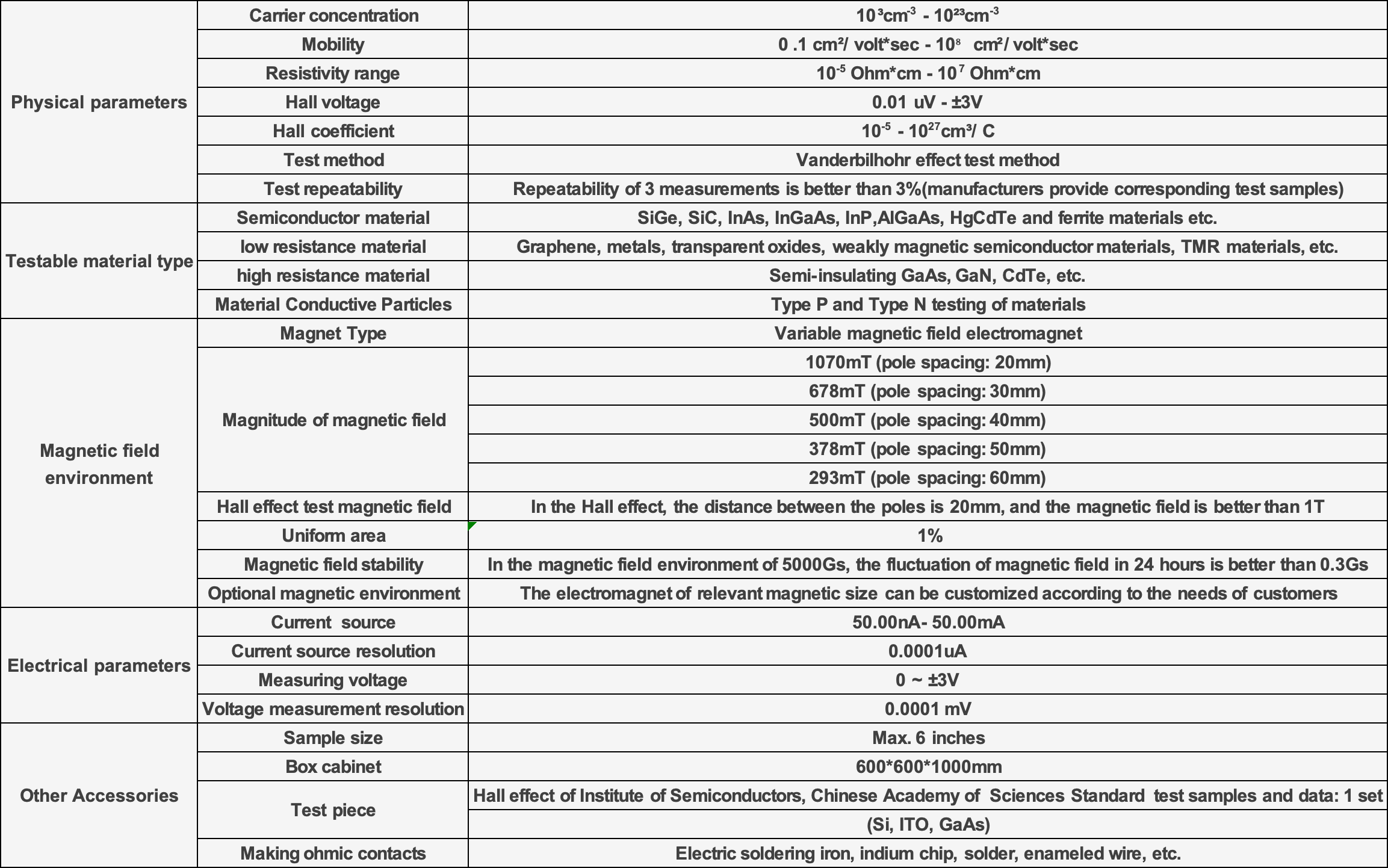

System parameter
Explore more products
Explore the product range.
Browse instruments and systems for your laboratory requirements.
CMT-1000H High - Temp Hall Effect Measurement System
CMT-1000H is designed for Hall effect analysis at high temperatures, integrating a vacuum chamber, Gauss meter, temperature control, and magnet system.
View product

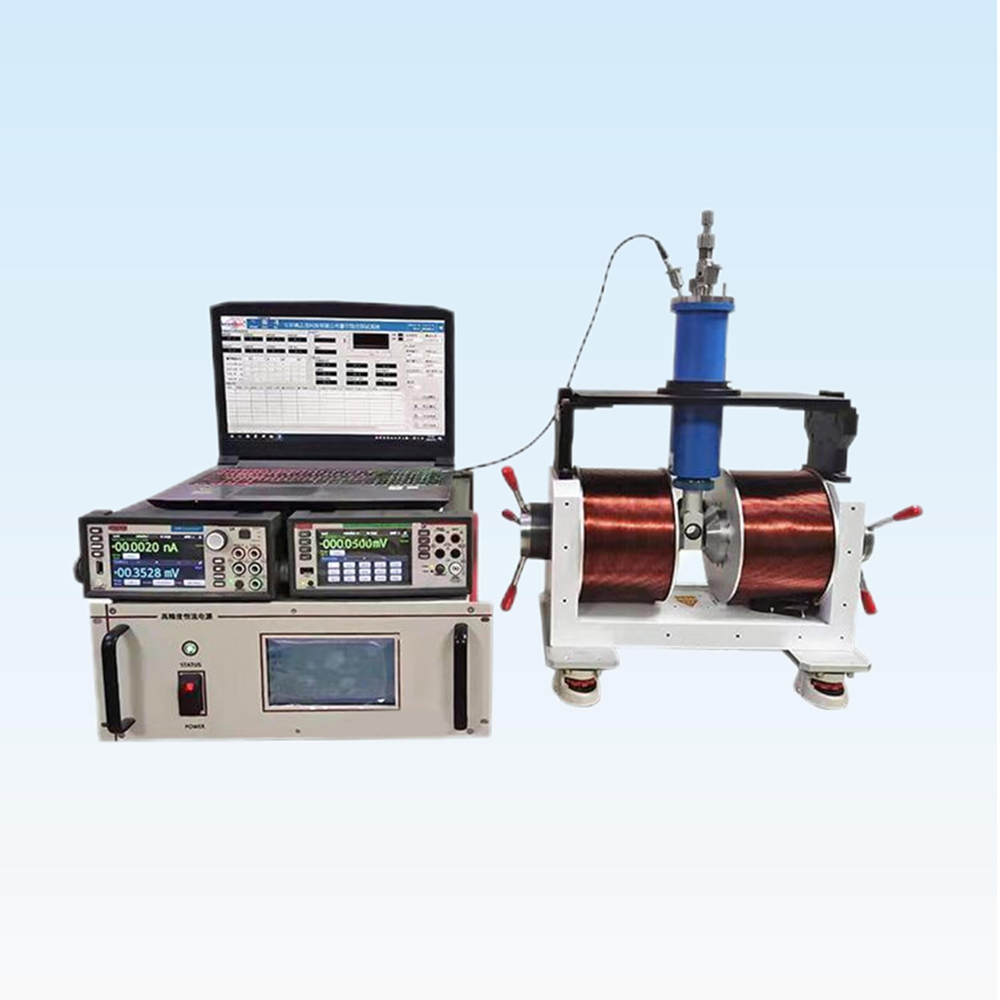

CMT-1000L Low - Temp Hall Effect Test System
