Magneto Optical Kerr Effect Measurement System (MK8000 Series)

The Vectomag MK8000 Series Magneto Optical Kerr Effect (MOKE) Measurement System is a high-sensitivity instrument designed for precision magnetic characterization.

It enables direct measurement of longitudinal, transverse, and polar Kerr rotation angles or ellipticity, while simultaneously acquiring magnetic hysteresis loops including coercivity and saturation fields.

This system combines Kerr effect measurement and magnetic domain observation, providing researchers with the ability to analyze micro-magnetic behaviors, magnetic anisotropy, and domain evolution in real-time.

Structural Diagram of MK8000 System

• Dual-function design for both Kerr effect measurement and magnetic domain imaging
• Measures single-point magnetism and supports full anisotropy mapping
• Real-time observation of dynamic magnetic domain evolution
• TTL-modulated semiconductor laser with low-noise signal detection
• Integrated optical module — plug-and-play sample setup
• Built-in lock-in amplifier for ultra-low-noise and high-stability measurements
• Optional modules for vacuum, cryogenic, and high-field environments

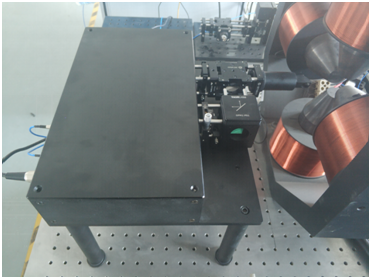

Physical Prototype of MK8000 System

• Magnetic thin films and multilayers
• Magnetic nanostructures and patterned media
• Soft and hard magnetic materials
• Spintronic and magneto-optical materials
• Magnetic domain and anisotropy analysis under varying fields

• Integrated laser source and photodetector module
• Lock-in amplifier and high-precision magnetic field controller
• Rotational and translation stages for 360° angular testing
• CCD imaging system for real-time domain visualization
• Control and data acquisition software

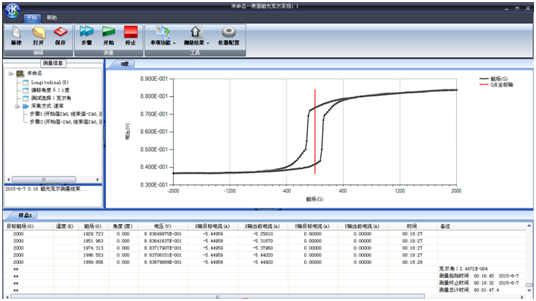

The MK8000 system software integrates measurement, data visualization, and domain imaging within a single interface.

It supports automatic data acquisition, parameter mapping, and live imaging of magnetic domains via CCD camera.

Software Capabilities:

• Fast Kerr loop acquisition and averaging
• Temperature and magnetic field synchronization
• Real-time display of Kerr rotation or ellipticity
• CCD-based magnetic domain imaging and analysis
• Export of hysteresis and mapping data in standard formats

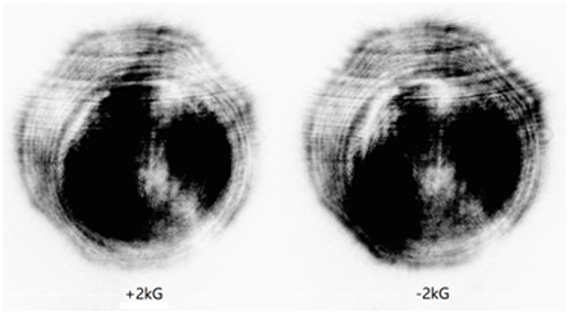

Magnetic Domain Reversal under Kerr Microscope

• Vacuum chamber for in-situ magnetic domain observation
• Cryogenic temperature module
• High-field electromagnet or superconducting magnet options
• Optical shielding and polarization accessories
• Sample rotation and positioning kits
