Liquid Nitrogen Cryostat System

The Liquid Nitrogen Cryostat System developed by Vectomag is a cost-effective and highly versatile low-temperature platform based on the steady-state bubble principle for precise temperature control.

By adjusting the cone-shaped gas plug clearance, the system stabilizes the boiling condition at the gas-liquid interface, effectively controlling heat leakage at a steady rate. Through the temperature controller, the sample stage temperature can be rapidly changed and accurately maintained at the desired value.

It is ideal for Hall effect, magnetoresistance, superconductivity, temperature-dependent electrical and optical experiments, magneto-optical measurements, and student demonstrations.

Applications extend to vacuum systems, magnetic fields, microscopy, spectroscopy, and low-temperature imaging.

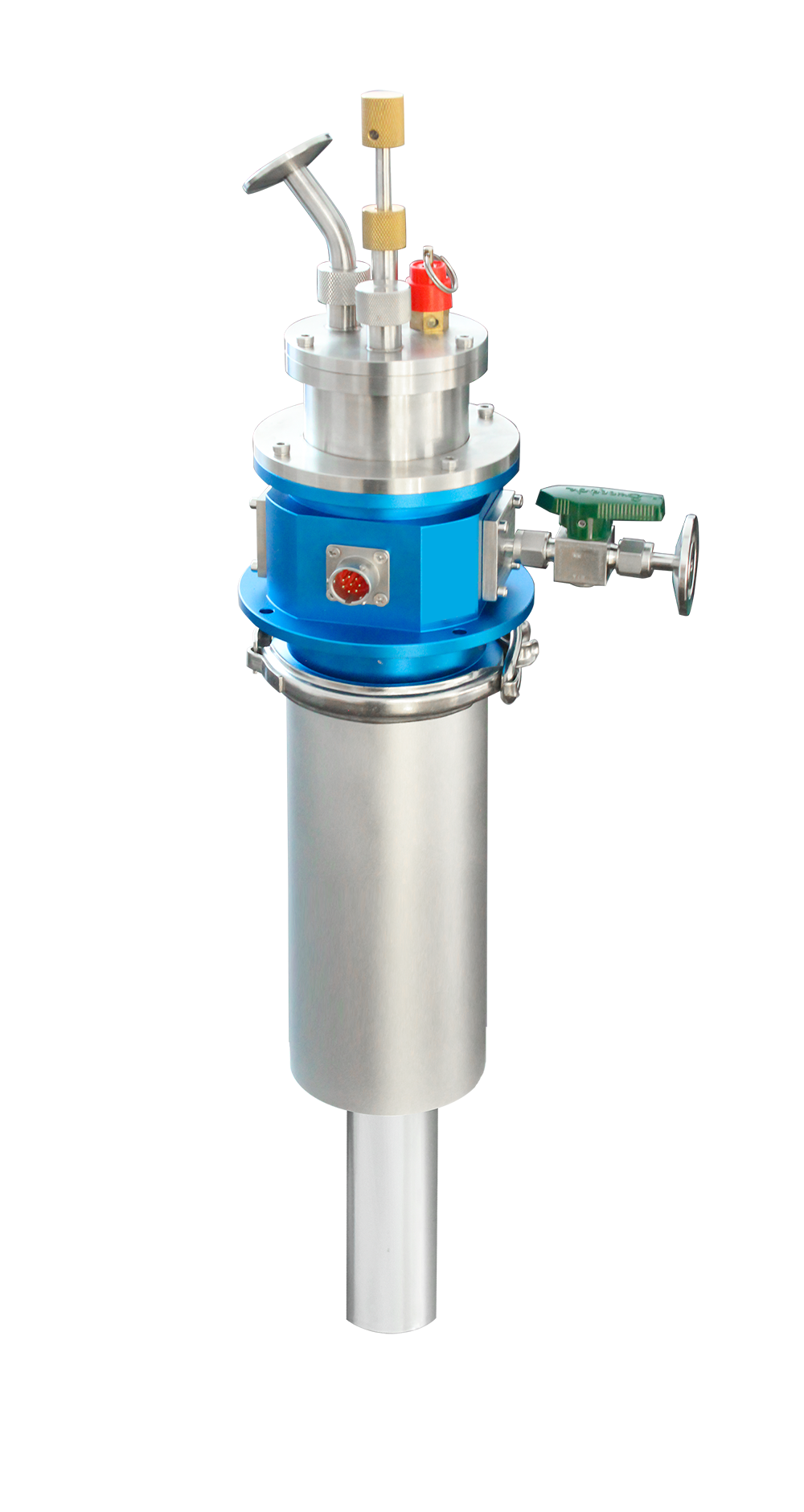

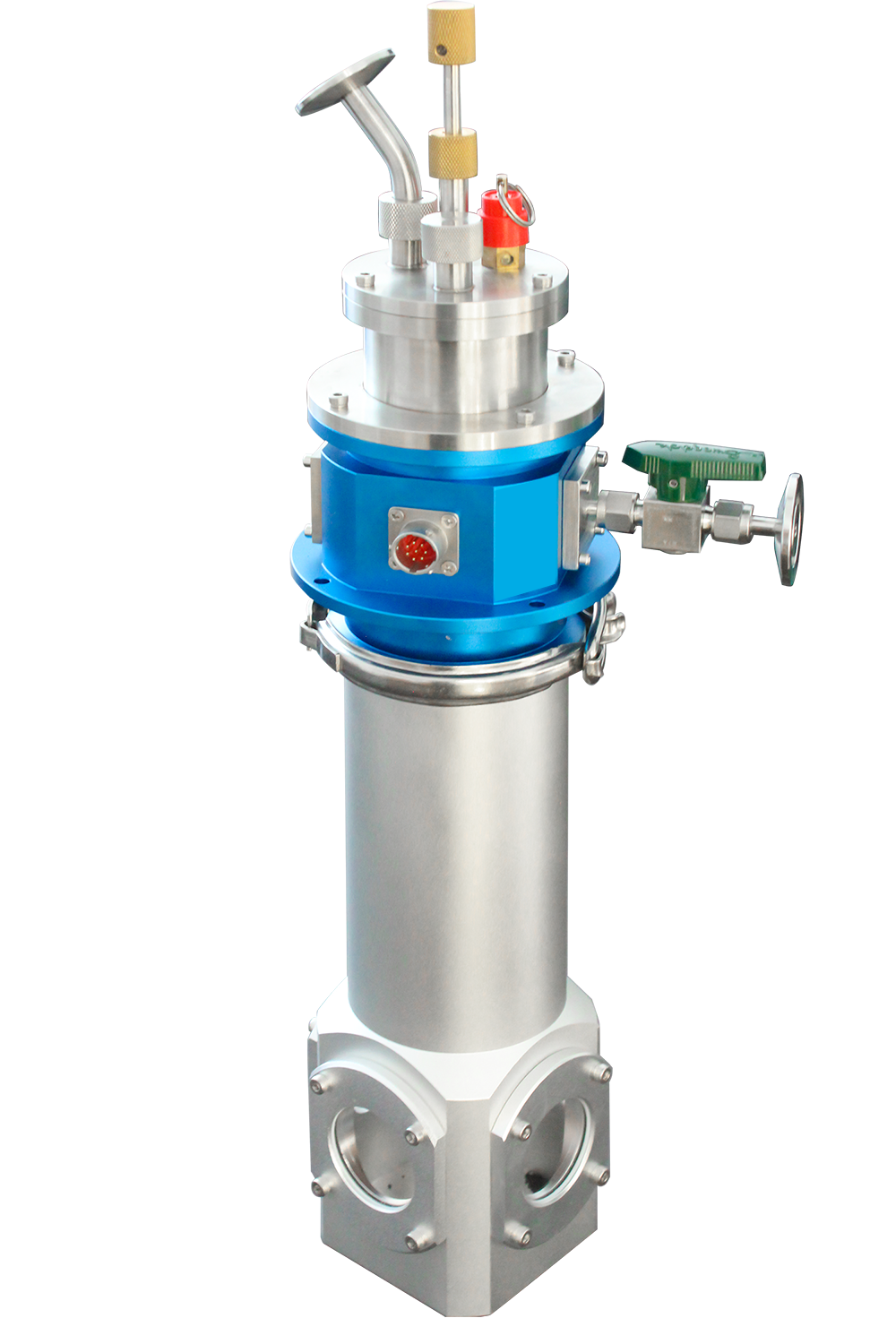

NCV30-4W liquid nitrogen thermostat standard optical system appearance

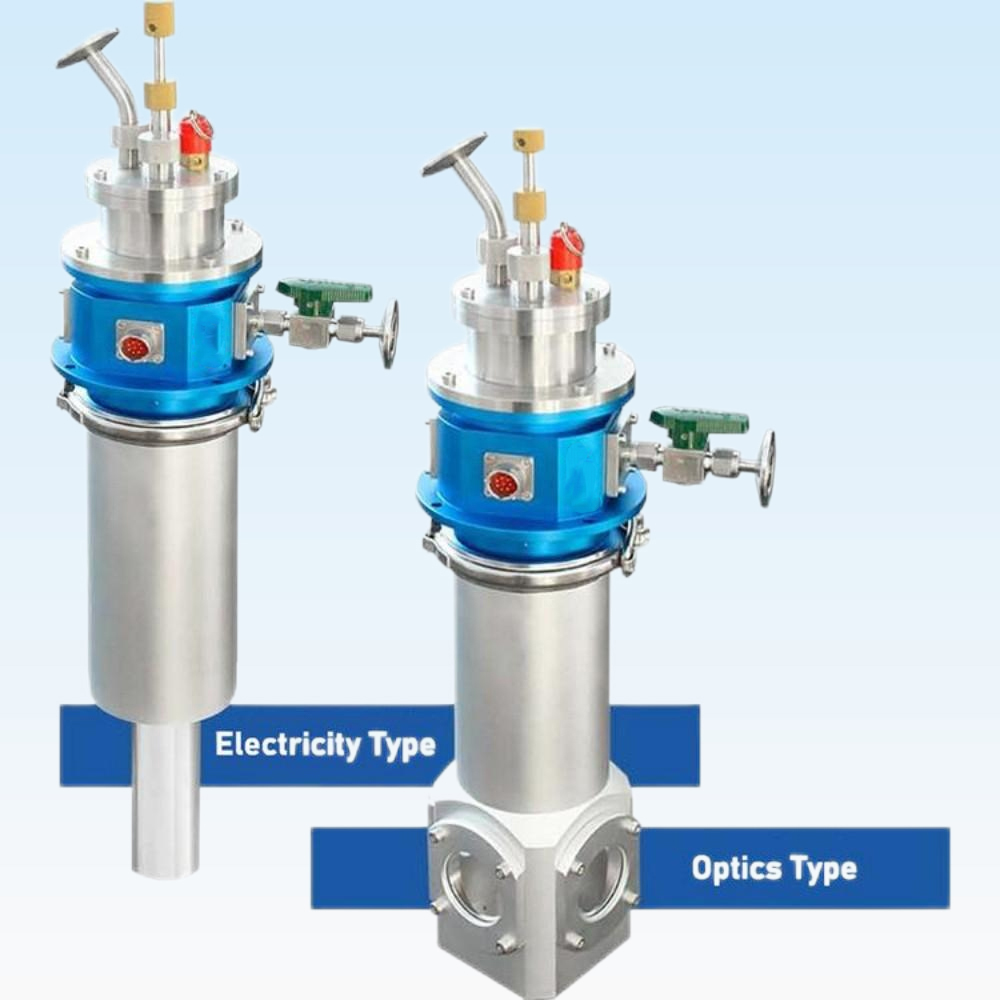

NCV15-2W liquid nitrogen thermostat compact optical system appearance

• Liquid nitrogen tank with steady-state bubble controller
• Vacuum chamber with cryo-adsorption layer
• Temperature controller & heating module
• Optical or electrical sample stage
• Quick-tightening vacuum cover clamp
• Optional optical windows and sample interfaces

Sample Chamber internal structure

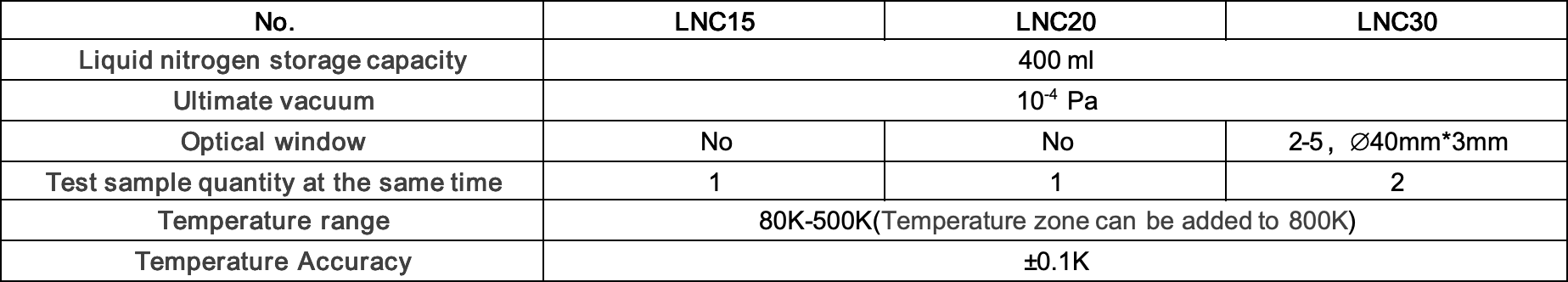

• Wide temperature range: 80 K – 500 K
• Rapid cooling & high efficiency based on steady-state bubble technology
• Stable vacuum environment ensuring excellent temperature stability
• Long-term vacuum retention with cryo-adsorbent in vacuum interlayer
• High-accuracy PT100 platinum temperature sensor with excellent repeatability
• Simple operation: easy liquid-nitrogen filling and re-filling, no pump or compressor required

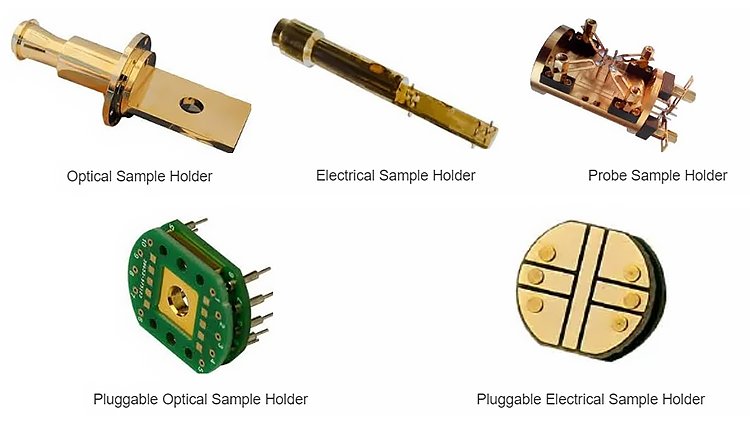

• Multiple sample holder options: optical / electrical / probe / pluggable types
• Compact structure & low maintenance cost – ideal for laboratories with limited space
• Customizable designs for optical, magnetic, electrical, or thermal experiments

• Hall effect and carrier type transition experiments
• Variable-temperature magnetoresistance measurements
• Superconducting and resistance-temperature studies
• Temperature-dependent optical & magneto-optical experiments
• Spectroscopy and low-temperature imaging
• Student laboratory demonstrations and research-grade applications

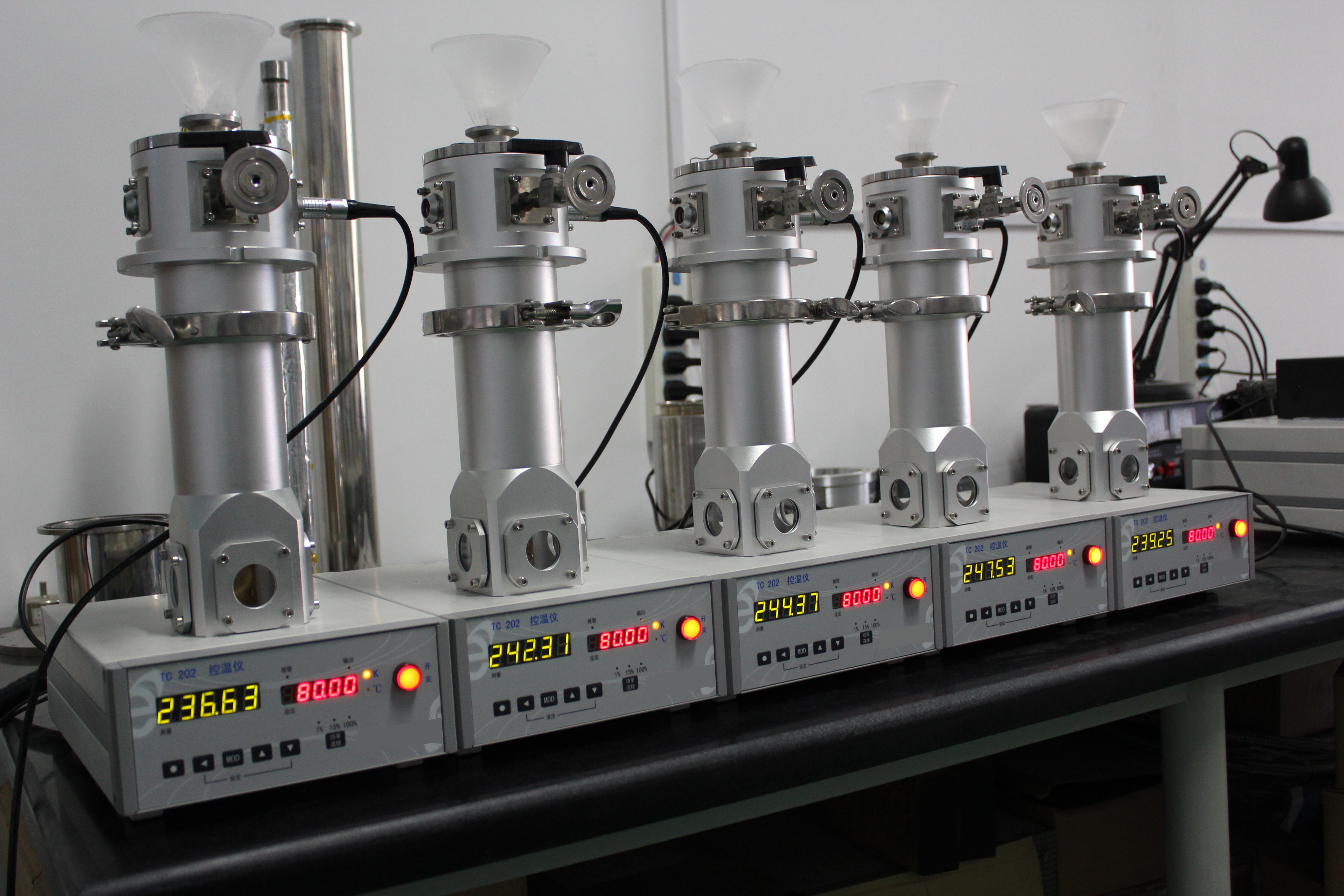

Typical laboratory setup of the cryostat system

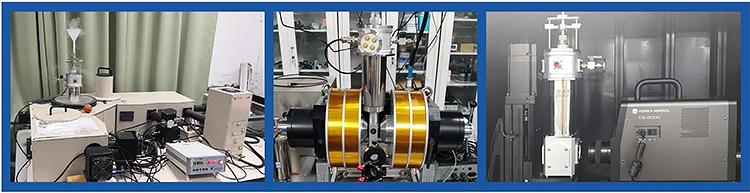

Usage scenario of Liquid Nitrogen Cryostat
