High Precision Excitation Power Supply

The Vectomag High Precision Excitation Power Supply is a fully digital, high-performance bipolar constant current power supply designed for precise excitation of inductive loads such as superconducting magnets, electromagnets, and Helmholtz coils.

It delivers smooth, stable, and low-noise current control with continuous zero-crossing output and contactless commutation, ensuring an accurate and reliable magnetic field generation.

When integrated with an optional built-in Gauss meter, it provides a high-precision magnetic field platform for continuous field scanning, fast commutation, and current or magnetic field mode operation.

This power supply is a critical component for high-end laboratory and industrial magnetic field applications requiring exceptional stability, fast feedback, and quench protection.

• Dual Control Modes ① Local Control: Touchscreen interface for direct parameter setting. ② Computer Control: USB or LAN connection for remote and efficient operation.
• Multiple Protection Functions ① Power failure protection (absorbs inductive backflow energy). ② Internal overheating protection (auto shutdown). ③ Overcurrent and overpower protection with automatic limitation and fault indication.
• Two Output Modes ① Current Mode: Directly set the load current. ② Magnetic Field Mode: Directly set the field intensity in magnets or coils. (Magnetic field mode requires the optional Vectomag high-precision Gauss meter.)
• Bipolar Output ① Four-quadrant operation for inductive loads. ② Smooth zero-crossing current without output switching. ③ Adjustable current change rate: 0.0007–0.5 Ir/s (Ir = rated maximum current).
• Superior Stability ① Current stability up to 5 ppm/h (ultra-high stability type). ② Excellent magnetic feedback and smooth output transitions.

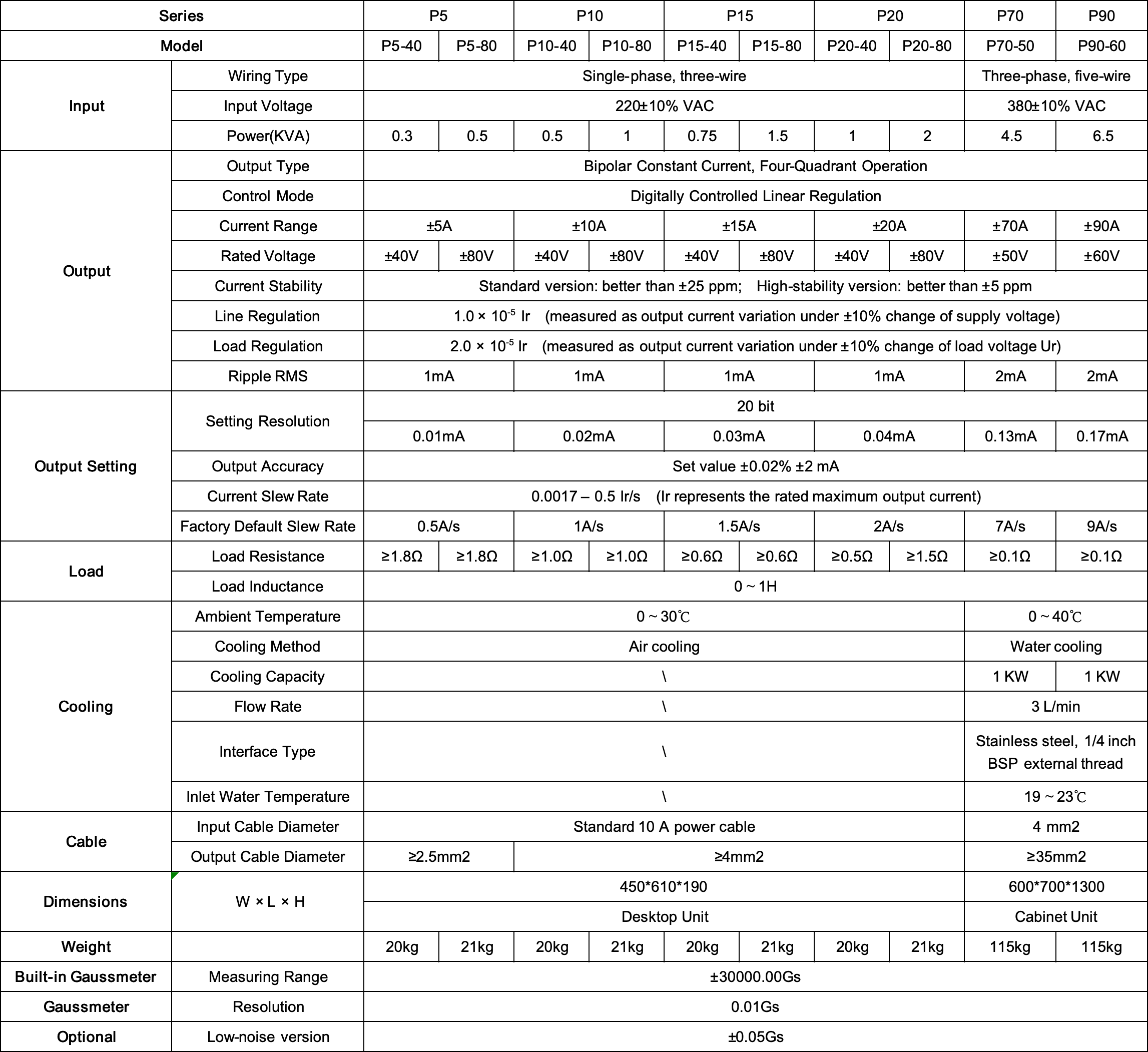

• Wide Power Range ① Output power: 0.5 kW – 15 kW ② Output current: 5 A – 120 A ③ Output voltage: 40 V – 120 V

• Real-time display of current, voltage, and field strength
• Automatic ramp-up and ramp-down control
• Output waveform recording and playback
• Fault log and alarm recording
• Remote operation and parameter synchronization

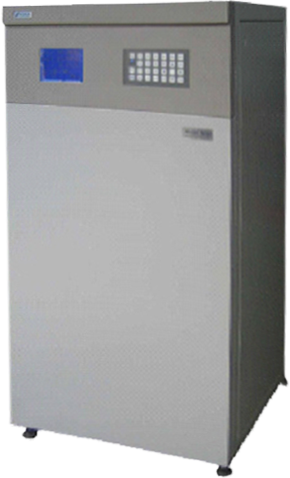

• Main power supply unit (cabinet type)
• Control interface (touchscreen + PC software)
• Internal communication and monitoring modules
• Optional integrated Gauss meter for magnetic field feedback
• Power cable and protection grounding

The Vectomag excitation power supply is widely used in:

• Superconducting magnet systems
• Electromagnetic field experiments
• Magnetic material research
• Helmholtz coil calibration
• High-precision magnetic field scanning
• Magnetoresistance and magneto-optical testing

It is ideal for both laboratory R&D and industrial magnetic control applications requiring ultra-stable and precise current control.

• Built-in or external high-precision Gauss meter
• Water-cooling system (for high-power models)
• Extended data communication interface (RS485 / Ethernet)
• Customized software modules for real-time field control
